Kussmaul Standard Auto Eject

Kussmaul Standard Auto Eject

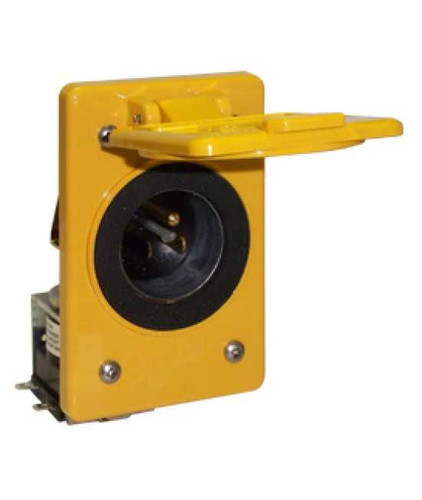

The Kussmaul Standard Auto Eject is a power input connector designed to be mounted in the side of a vehicle to permit connecting 120 Volt AC shoreline. It comes with a weatherproof cover. The cover is spring loaded to close, preventing water from entering when the shoreline is not connected. A solenoid wired to the vehicle’s starter, is energized when the engine is cranked. This instantaneously drives the plug from the receptacle. This simple, reliable device, eliminates forever the broken cables which result when drivers forget to remove the shoreline before driving away.

Features:

• 120 Volts AC, 15 or 20 Amps
• Automatically disconnects shoreline
• Designed specifically for emergency vehicles
• Eliminates broken shoreline
• 2 year warranty (FOR AUTO EJECT ONLY)
• Default color for cover is yellow

Dynamic Disconnect (Optional)

The Dynamic Disconnect is a coupling device wired between an Auto Eject and the vehicle, and serves to only connect the A.C. power after the plug has been inserted into the Auto Eject. Upon vehicle startup, the Dynamic Disconnect opens the load circuit before ejecting the plug. By providing the time delays on both application, and removal of power, no arcing can occur at the connector. Note A.C.power must be present at the shoreline connector, in order to operate the Dynamic Disconnect.

Features:

• 30A contacts
• Totally eliminates connector arcing
• Disconnects load before Auto Eject is ejected
• Time delay connects load after Auto Eject is plugged in
• Works on both the WP and Super Auto Ejects
• 3 year warranty (FOR DYNAMIC DISCONNECT ONLY)
