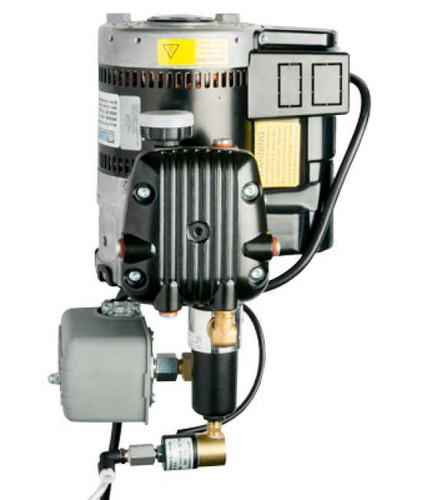

Kussmaul Auto Pump 120 Vac With Auto Drain
Kussmaul
$895.10
Kussmaul Auto Pump 091-9B w/ Auto Drain
The Kussmaul Auto Pump 091-9B w/ Auto Drain is an 091-9B-1 Auto Pump with an Automatic Drain installed. A normally open solenoid valve drains the moisture from the trap each time the compressor shuts down. The Auto Drain assures that the filter bowl is always drained and does this without intervention by maintenance personnel.
Features:
- Previously 091-9B-1-AD
- 100 PSI Max Rating, 120V, 4A
- Vehicle mount compressor ensures air brake system is properly pressurized for immediate truck departure from station
- Automatically purges water separator bowl every time compressor cycles off via a normally open solenoid
- Pressure switch regulated operation automatically senses low
- pressure in air system and restores proper pressure, preventing brake lock-up
- No interference with engine mounted air compressor
- Factory set PSI actuation points: 75 "On", 95 "Off" with
- Adjustment differential 20 PSI
- Sealed ball bearings for long service life
- Compact size
- 2-year warranty
- Part# 091-9B-4-AD replaces Part# 091-9B-1-AD
Specifications:
| PSI: | 100 |
| Input Voltage: | 120 |
| Orientation: | vertical |
| Auto Drain: | yes |
| Input: | 120 Vac, 50/60 Hz, 1.8 Amps |
| Output: | 1.0/1.3 CFM, Open Flow, 100 PSI Max |
| Warranty: | 2 Year |
| Weight: | 16 lbs |
| Motor Type: | Shaded Pole AC |
| Motor Horsepower: | 1/8 HP |
| Pressure Switch: | Adjustable Set-Point Factory set to 75 PSI Cut-In, 95 PSI Cut-Out |
| Outlet Connection: | 1/4 NPT, Female |
