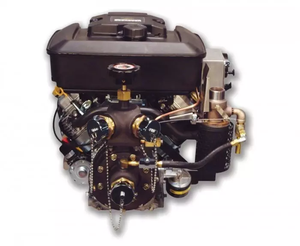

Darley 1-1/2 AGE 13 HP Honda High-Pressure/Low Volume Engine Mounted Fire Pump

Darley 1-1/2 AGE 13 HP Honda High-Pressure/Low Volume Engine Mounted Fire Pump

The Darley 1-1/2 AGE 13 HP Honda High-Pressure/Low Volume Engine Mounted Fire Pump is a low-volume, high-pressure water pump engineered for critical fire protection applications. Built for durability and rapid response, it delivers reliable water flow and pressure essential for firefighting systems. Its robust design ensures dependable performance in emergency situations.

Features:

• Electric start with recoil rope backup
• Bronze impeller and wear rings
• Stainless steel shaft
• Mechanical seal
• Mounting base
• Hard anodized aluminum alloy pump casing
• Aluminum alloy gear case and engine adapter
• Heat-treated alloy steel helical gears
• Ball bearing construction pump and engine
• 2″ NPT suction
• 1-1/2″ NPT flanged discharge
• 2+ hours of runtime per tankful of fuel at 23 GPM @ 175 psi
• 2.45:1 gear ratio
• Discharge pressure gauge

Performance:

• Standard Stock ratio2.45:1 gear ratio performance

  • 23 GPM @ 225 PSI
  • 100 GPM @ 85 PSI
  • 120 GPM @ 60 PSI

  Also available with: 2.03:1 gear ratio performance:

  • 23 GPM @ 175 PSI
  • 100 GPM @ 105 PSI
  • 120 GPM @ 75 PSI

Engine:

• Honda GX390: 13 hp
• 4-stroke
• Single cylinder OHV
• Ball bearing supported crank shaft
• 6.4 qt. gas tank
• 12-volt starter
• 3 amp regulated alternator
• electric start with recoil rope start back-up

Dimensions:

• 23.5"L x 20"W x 19.25"H

Weight:

• 150 lbs (68 kg)

Applications:

• Brush truck
• Wildland/attack fire suppression
• Booster reel
